Black Bee: Unleashing Performance and Precision
Introduction: The BLACKBEE 125 cc represents the pinnacle of modern and innovative design within the CORS-AIR engine lineup. Meticulously crafted with an emphasis on reliability, high performance, and attention to detail, this engine is engineered to elevate the paragliding experience. Specifically tailored for pilots seeking a lightweight engine with minimal fuel consumption, the BLACKBEE 125 cc seamlessly pairs with the latest Reflex paragliders, offering an exhilarating flight experience.
Technical Features:
- Single cylinder air-cooled engine
- Two-stroke powerhouse
- Bore: 54 mm, Stroke: 54 mm
- Total displacement: 125 cc
- Compression ratio: 10.5:1
- Six-blade reed-valve system for fuel delivery to the crankcase
- Diaphragm carburettor WB46

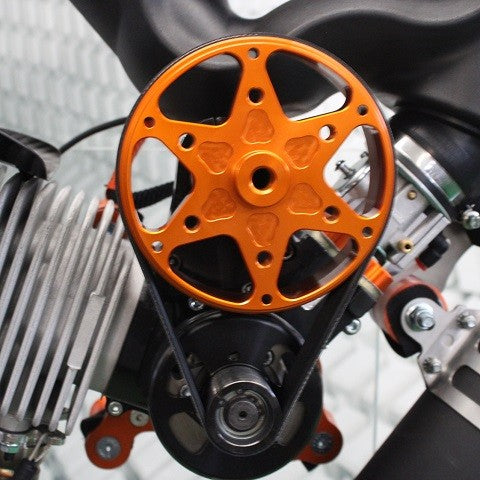

- 1:3.6 reducer with Poly V belt
- Continuous operating temperature: 190°C, maximum temperature: 230°C
- Engine mounting: Four shock-absorbing rubber mounts
- Propeller rotation: Counterclockwise
- Maximum RPM: 9800 RPM
- Spark plug: NGK BR9ES
- Fuel mixture: 2.2% with 100% synthetic oil (suggested brands: Malossi 7.1)
- Thrust: 60 kg
Structural Features:
- Flash starter included for convenient ignition
- Crankcases molten in G-Al Si 9 UNI 3051 alloy, subsequently treated
- Six-port distribution system for optimized performance
- Cylinder crafted in light silicon alloy with Cermetal protective coating
- Piston with ultra-light structure reinforced with side flaps for heat dispersion
- Head made of die-cast aluminum alloy with a high percentage of silicon and concentric combustion chamber, calculated squish
- Drive shaft in 18 Ni Cr Mo5 with five thermic treatments on every component
- Connecting rod in copper-plated steel 18Ni Cr Mo 5, joined to the drive shaft through very precise high-speed silver-plated roller bearings
- Roller bearings fit for high-speed class C3
- Seal ring in Witon with very high resistance and long duration
The BLACKBEE 125 cc is not just an engine; it's a marvel of engineering, meticulously designed and crafted to deliver unparalleled performance and precision in the world of paragliding. Elevate your flying experience with the power and reliability of the BLACKBEE.
